          產品展示  product


        Trestle/Trestle Work


        The combined steel trestle (work) is an integrated operation platform used for installing car and train liquid medium handling machinery and supporting pipelines, and for the operator to walk during operation.

         Model Description

        • Use occasion code: QC – for car; HC – for train
        • Structural type code: T – trestle work Q - trestle
        • ?Sequence improvement number code: 1,2,3…(specifically refer to the list of general specification and model)
        • ?Dimension parameter code: mark the dimension of trestle/trestle work with letters B×A; B – width (m) A – length (m)

         List of General Specification and Model

        Car Trestle Work
        1
        Single upright column
        1.6
        1.5
        2.5
        QCT/1-1.6*1.6
        2
        Double upright column
        2.0
        2.0
        2.5
        QCT/2-2*2
        3
        Through type
        2.0
        According to user demands
        4.5
        QCT/3-2*A
        Train Trestle
        1
        Single side
        1.6
        According to user demands
        3.5
        HCQ/1-1.6*A
        2
        Double side
        2.0
        According to user demands
        3.5
        HCQ/2-2*A
        3
        Simple
        2.0 /0.8
        According to user demands
        3.5
        HCQ/3-2*A

          Note: our Company is able to design and manufacture trestles of special specifications according to user demands.

         QCT/1-1.6×1.6 single upright column car trestle work
        Use occasion: car tank car side loading/unloading operation
        Material: carbon steel or stainless steel
        Surface treatment: impeller blasting
        Corrosion protection: paint or hot galvanized
        Panel type: steel grating or checkered plate
        Install 4 crane tubes and 3 movable ladders at most
         QCT/2-2×2  double upright column car trestle work
        Use occasion: train tank car side loading/unloading operation
        Material: carbon steel
        Surface treatment: impeller blasting
        Corrosion protection: paint or hot galvanized
        Panel type: steel grating or checkered plate
        Install 4 crane tubes and 2 movable ladders at most

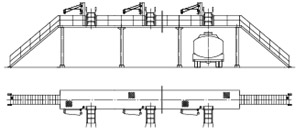

         QCT/3-2×A  through type car trestle work

        Use occasion: auto tank car through type loading/unloading operation
        Material: carbon steel or stainless steel
        Surface treatment: impeller blasting
        Corrosion protection: paint or hot galvanized
        Panel type: steel grating or checkered plate
        The trestle work length can be designed according to actual needs
         HCQ/1-1.6×A single side train trestle work

        Use occasion: train tank car single side loading/unloading operation
        Material: carbon steel
        Surface treatment: impeller blasting
        Corrosion protection: paint or hot galvanized
        Panel type: steel grating or checkered plate
        The trestle work length can be designed according to actual needs
         HCQ/2-2×A double side train trestle work

        Use occasion: train tank car side loading/unloading operation
        Material: carbon steel
        Surface treatment: impeller blasting
        Corrosion protection: paint or hot galvanized
        Panel type: steel grating or checkered plate
        The stall (total length) can be designed according to actual needs

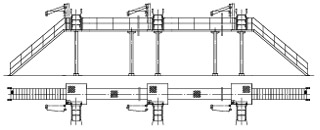

         HCQ/3-2×A  simple train trestle work

        Use occasion: train tank car side loading/unloading operation
        Material: carbon steel
        Surface treatment: impeller blasting
        Corrosion protection: paint or hot galvanized
        Panel type: steel grating or checkered plate
        The stall (total length) can be designed according to actual needs
